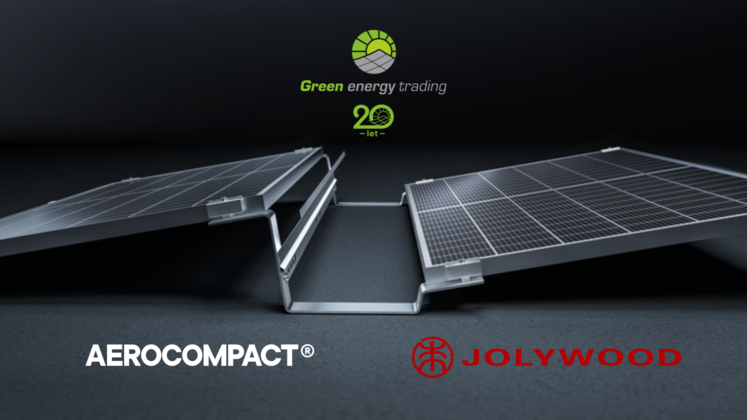

Найкраще поєднання: система кріплення Aerocompact та панелі Jolywood

The Austrian company Aerocompact was founded in 2014. It specializes in the development, production, and distribution of solutions for mounting photovoltaic panels, taking into account all static requirements, wind and snow loads, and the highest industrial standards and norms.

Their aerodynamically optimized solutions for mounting photovoltaic systems are patent-protected and offer safety and mechanical stability. Their designs have successfully passed a series of tests, and their quality and reliability are backed by CE EN1090, UL2703, UL3741, and MCS Certification.

AEROCOMPACT provides a 25-year warranty and 30-year functional reliability on all its components.


Complete package
Choosing the right solar panels from an endless array of options can be challenging. When you also need to select a suitable mounting structure, the complexity increases. To ensure that everything fits properly and the result is as good as possible, you need to choose very carefully.

But with us, it's a piece of cake. The new Jolywood panels in Transparent Black and the Aerocompact structure fit together perfectly. What's more, you can see samples of the structures for yourself at our headquarters in Znojmo and take part in training courses both here and at Aerocompact in Vienna.

We are also an authorized Jolywood distributor, which means you are guaranteed not only fast delivery and unbeatable prices, but also the certainty of full technical support. This even applies to Aerocompact structures.

Compact Flat S10
The COMPACTFLAT S10 system is an aerodynamic mounting system for south-facing flat roofs. It includes a pre-assembled PES protective pad for framed photovoltaic modules. It is available with a slope of 10° and 15°, with various row spacings, and also in a version for mountainous areas.



Other components of the Compact Flat S10

Roof connection
AEROCOMPACT offers a solution for roofs that cannot bear the additional weight of a photovoltaic system. The combination of mounting points on the roof and ballast reduces the overall weight of the system.

This option is also suitable for areas with increased seismic activity to prevent the system from shifting as a result of earthquakes.

Version for mountainous areas
This version is used in case of higher snow loads, which are calculated using our online software AEROTOOL based on a specific project.

Ballast trays
This system variant with ballast trays, available in various sizes, is designed for areas with high wind loads and roofs with low point loads.

It provides additional load on the module and evenly distributes concentrated loads on the roof covering. An additional ballast securing bracket prevents stones from slipping and ensures their even distribution.


Cable management
The string cable management solution is UL-certified and available as a standard product.

Jolywood
Since its establishment in 2008, Jolywood has received numerous prestigious awards that attest to the high quality of its products.

These include, for example, the award for the world's first n-TOPCon Mono-glass Bifacial Transparent Backsheet from TÜV SÜD, the TOP PERFORMER PV Module Reliability Scorecard 2024, the Global Award for the 500 Best Energy Companies, and many others.

At the same time, the company has been ranked among BNEF Tier 1 since 2019.

Jolywood Niwa Black series

• 30-year lifespan delivers 10-30% extra energy production compared to conventional P-type modules

• ZERO LID (light-induced degradation)

• Higher reliability - Jolywood's latest J-TOPCon 2.0 technology, no polysilicon encapsulation, full electrical insulation

• Better production in low light

• Better temperature coefficient

• Full black design

JW-HD108N-R2-500 FB Transparent Black
Solar panel with a power output of 500 Wp and an efficiency of 22.5%. Up to 85% bifaciality, more energy from the rear side.
ZERO LID (Light Induced Degradation)
N-type solar cells naturally have no LID, which can increase energy production.
Higher reliability - New generation TOPCon technology with no current leakage and higher resistance to hot spots.

Width:113.40 cm
Height:196.00 cm
Thickness: 3.00 cm
Frame color:black
Technology:TOPCon

JW-HD96N-R2-455W Transparent Black
Bifacial solar panel with a power output of 445 Wp and an efficiency of up to 22.8%.
Higher output even in low light conditions, such as on cloudy or foggy days.Lower temperature coefficient (-0.28%) and lower operating temperature leading to higher performance.
More areas of application, such as BIPV, vertical installation, snow fields, high humidity, windy and dusty areas.

Width:113.40 cm
Height: 176.20 cm
Thickness:3.00 cm
Frame color:black
Technology:TOPCon
