Гаряча новинка від Canadian Solar та монтажна система Aerocompact ✨

Choosing the right solar panels can be challenging in itself, let alone choosing the right mounting system to achieve the best possible result.

But with us, it's a breeze. Canadian Solar's CS 6.2 solar panels and Aerocompact construction are a perfect match and what's more. You can see samples of the structures for yourself at our Znojmo headquarters and attend upcoming training sessions in Znojmo and also directly at Aerocompact in Vienna.

We are also an authorized distributor of Canadian Solar, which means that you not only have the guarantee of fast delivery and unbeatable prices, but also the assurance of all technical support. And even when it comes to Aerocompact constructions.

Canadian Solar
Canadian Solar is one of the most reliable companies in the solar and renewable energy sector. Canadian Solar panels have received high ratings in quality tests conducted by the California Energy Commission PVUSA.

They ranked first in Newsweek's 2024 list of the world's most trusted companies in the energy and public services sector. In 2024, they were awarded the Best Photovoltaic Brand in the USA by EUPD Research.

Since 2016, it has been ranked among the Tier 1 solar companies by BloombergNEF.

Canadian Solar CS6.2-54TM-500 BF
Monocrystalline solar panel with a power output of 500 Wp and an efficiency of 22.5%. Excellent anti-LeTID and anti-PID performance. Higher reliability.
Lower temperature coefficient (Pmax): Pmax: -0.29 °C, increases energy yield in hot climates. Lower LCOE and system costs.
Suitable for year-round use thanks to its resistance to high snow loads of up to 5400 Pa and wind loads of 2400 Pa.
Tested against hailstones with a diameter of 35 mm in accordance with IEC 61215.

! Hot new product in our range!

Width: 113.40 cm
Height: 196.10 cm
Depth: 3.00 cm
Technology: TOPCon
Panel type: Mono

Aerocompact
The Austrian company Aerocompact was founded in 2014. It specializes in the development, production and distribution of PV panel mounting solutions with respect to all static requirements, wind and snow loads and the highest industry standards and norms.

They have entered the market with an innovative solar panel mounting bracket system that reduces the amount of material required for the understructure of PV systems by one third.

Together with the mounting components, they later launched the specially developed visualization and planning software AEROTOOL.

Their aerodynamically optimised solutions for mounting PV systems are patent protected and offer safety and mechanical stability. All products are tested to the most stringent industry standards and are extremely cost-effective.

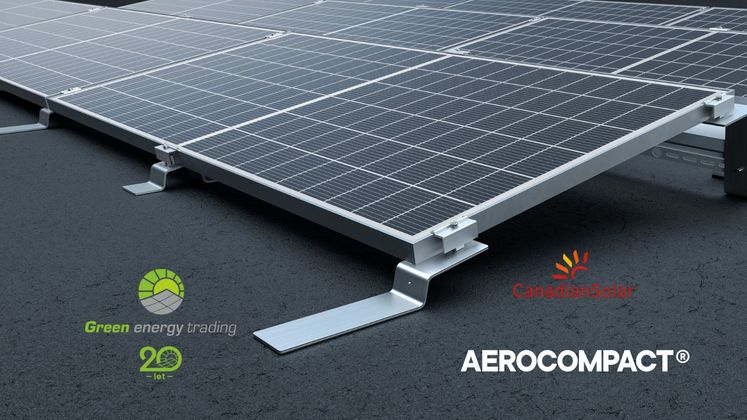

Compact Flat S10
The COMPACTFLAT S10 system is an aerodynamic mounting system for south-facing flat roofs. It includes a pre-assembled PES protection pad for framed PV modules. It is available with 10° and 15° inclinations, with different row spacings and also in a version for mountainous areas.

Components of the Compact Flat S10

Connection to the roof
AEROCOMPACT offers a solution for roofs that cannot support the additional weight of a PV system. The combination of roof mounting points and ballast reduces the overall weight of the system.

This option is also suitable for areas with increased seismic activity to prevent system displacement due to earthquakes.

Version for mountainous areas
This version is used in the case of higher snow loads, which are calculated using our online software AEROTOOL based on the specific project.

Ballast trays
This version of the system with ballast tubs, available in different sizes, is designed for areas with high wind loads and roofs with low point load capacity.

It provides additional load per module while evenly distributing concentrated loads on the roof covering. An additional locking ballast holder protects the stones from slipping and ensures that they are evenly distributed

Cable management
The string cable management solution is UL-certified and available as standard product.
